XU-005

LUBRICATED PTFE FIBER PACKING

Model :XU-005
Brand : TIANYI

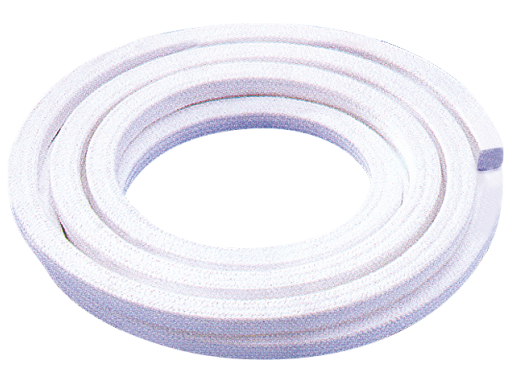

LUBRICATED PTFE FIBER PACKING

Material: It is a braided packing made of pure P.T.F.E. thin yarns fiber,

and is treated with a special inert lubricant.lt is a very plastic packing .

Characteristic:Under a minimum pressure of the stuffing box, it keeps

unchanged for a long period.The low friction coefficient prevents the surface of the shaft from forming heat even in the presence of high peripheral speeds.

Applications: It is suitable for high-concentrated chemical products which are strongly aggressive and oxidative.

PRESSURE

2 ~25MPa

Standard(mm)

3.2

4.8

6.4

7.9

9.5

11.1

12.7

15.9

19.0

22.225.4

TEMPERATURE

-240~288°C

Size (inch)

1/8

3/16

1/4

5/16

3/8

7/16

1/2

5/8

3/4

 7/8 1

LINEAR SPEED

2~16 M/s

kg/m3

0.06

0.12

0.17

0.30

0.48

0.58

0.78

1.15

1.65

2.20 2.84

PH

0~14

Braided method

Square braided

Lattice braided
