XU-003

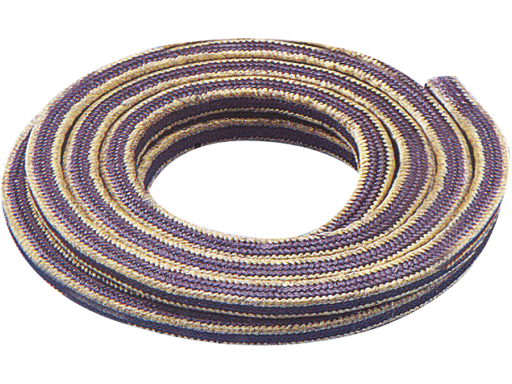

ARAMID&PTFE FIBER PACKING WITH GRAPHITE

Model :XU-003
Brand : TIANYI

ARAMID&PTFE FIBER PACKING WITH GRAPHITE

Material: It is a high-quality braided packing made of P.T.F.E.yarns of Aramid fiber.lt can prevent gap from extrusions in the presence of high pressure and temperature.

Characteristics: It has very good thermal conductivity and sliding velocity .It enables to seal high pressure piston pump during a long running period.

Application: It can be used in sealing water, sewage water, hot water, oils, greases, weak acids and alkaline solutions, abrasive medium.

PRESSURE

2~25MPa

Standard(mm)

3.2

4.8

6.4

7.9

9.5

11.1

12.7

15.9 19.0 22.2

25.4

TEMPERATURE

-240~288°C

Size (inch)

1/8

3/16

1/4

5/16

3/8

7/16

1/2

 5/8 3/4 7/8

1

LINEAR SPEED

2-16 M/s

kg/m3

0.06

0.12

0.17

0.30

0.48

0.58

0.78

1.15 1.65 2.20

2.84

PH

0-14

Braided method

Square braided

Lattice braided
